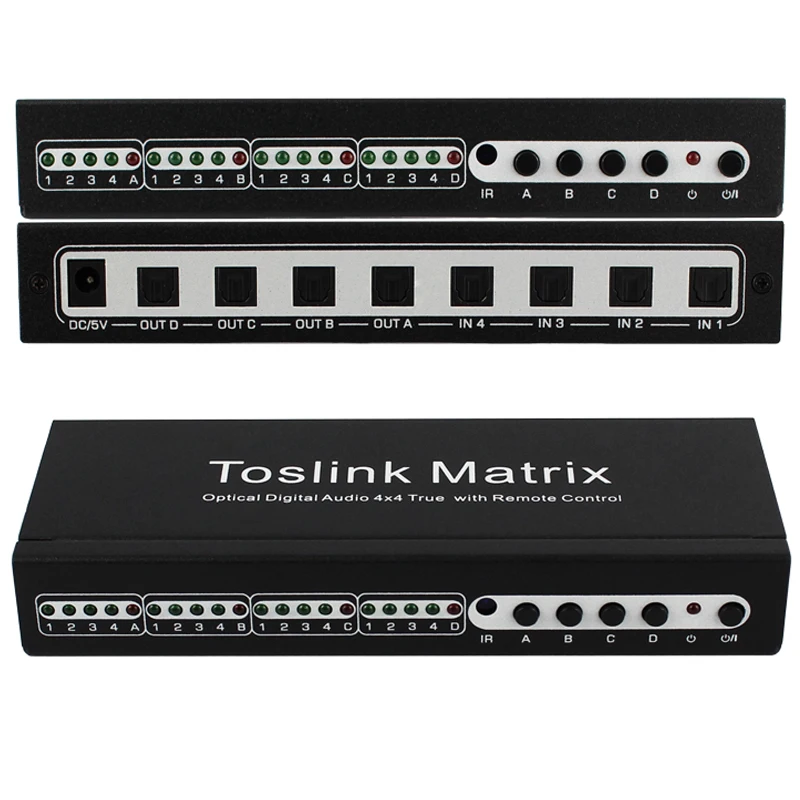

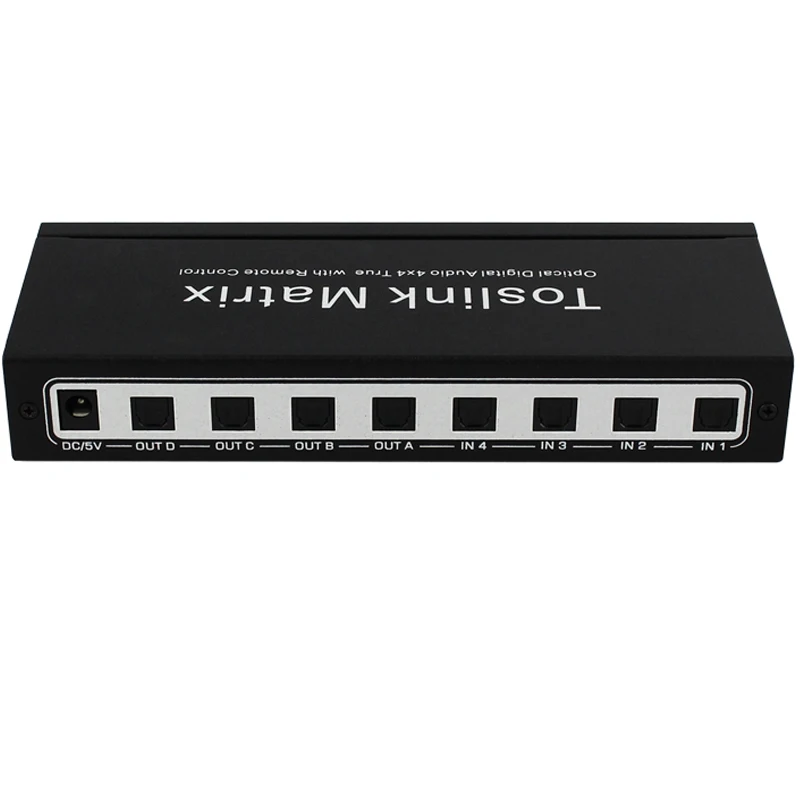

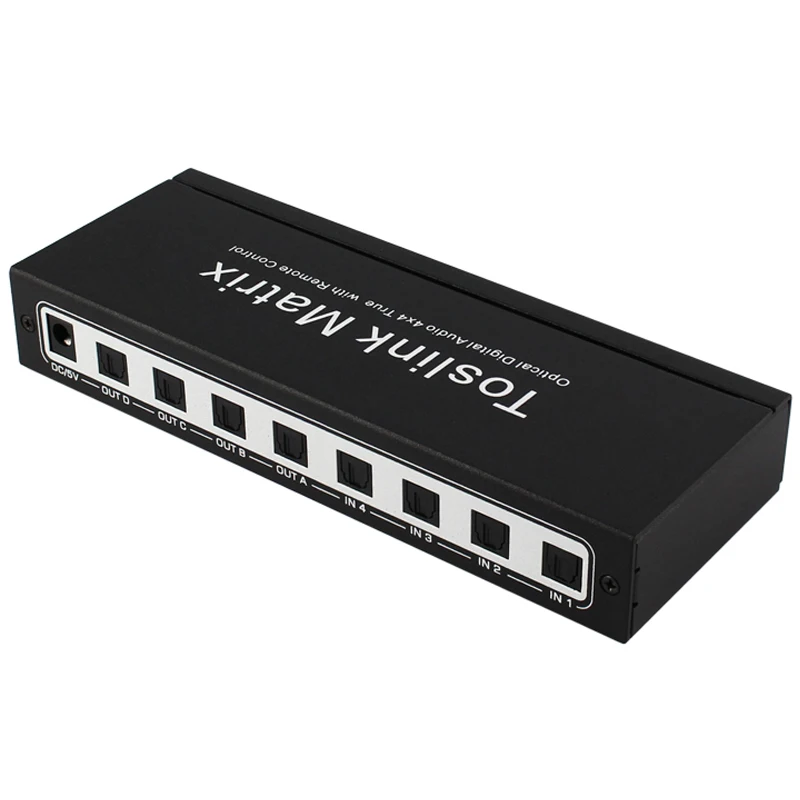

Toslink Matrix 4x4 Switch Switcher | SPDIF /TOSLINK Digital Optical Audio 4x4 True Matrix Switcher Selector | Remote Control

sold in last hours
Your Price:
$54.99 $63.90

25942739-eu-power-plug-hdmi
Quantity

Checkout Secure
Checkout Secure
Order in the next  to get it by

Viewing This Product



5 Great reasons to buy from us:

  • Image of Secure Ordering
  • Image of 365-Day Money-Back Guarantee
  • Image of 100% Satisfaction Guaranteed
  • Image of Easy Returns
  • Image of Free shipping (when you spend over XXX)

Item specifics:

Connector A: HDMI
Gender: Male-Male
Connector B: HDMI
Type: HDMI Cables
Model Number: HY-MA0404-S-T

Product Description:

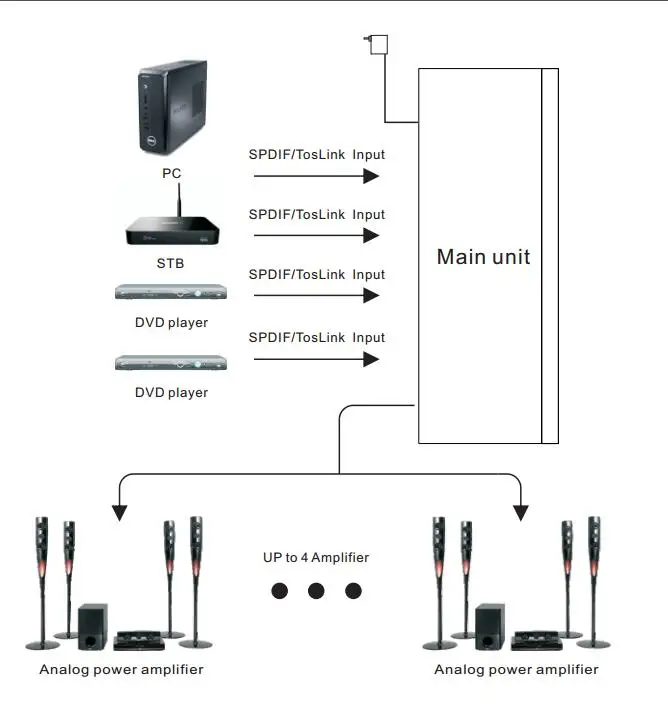

This SPDIF/TOSLINK Optical Digital Audio 4x4 True Matrix with Remote Control could put the four sets of SPDIF output signal source and four SPDIF input device connected.It can be easily split or switched between four SPDIF signal and four SPDIF signal receiving equipment.

Features:

Four ways of optical fiber signal input split or switch to four sets of SPDIF/Toslink signal receiving device.
Audio format support: LPCM2.0/DTS/Dolby-AC3.
Supports signal retiming.Used optical fiber cable loss less the 0.2dB/m,Output distance is up to 5m.
The input control can through and also can directly press the button.
Supports last time working state memory when power off.
Remote Controller
Supports power on boot and power on standby two modes (Default is power on standby
mode).
LED status indication,it can tell us the working state of the device very easily.
No loss of quality.
Installs in minutes.
Need DC5V/1A power supply.
Over-voltage protection can prevent the damage caused by connecting unmatched power
adapter to the machine,if the lighf for standby indication flashed,if shows that the output
voltage from the power adaptor is too high and the adaptor        needs to be changed.

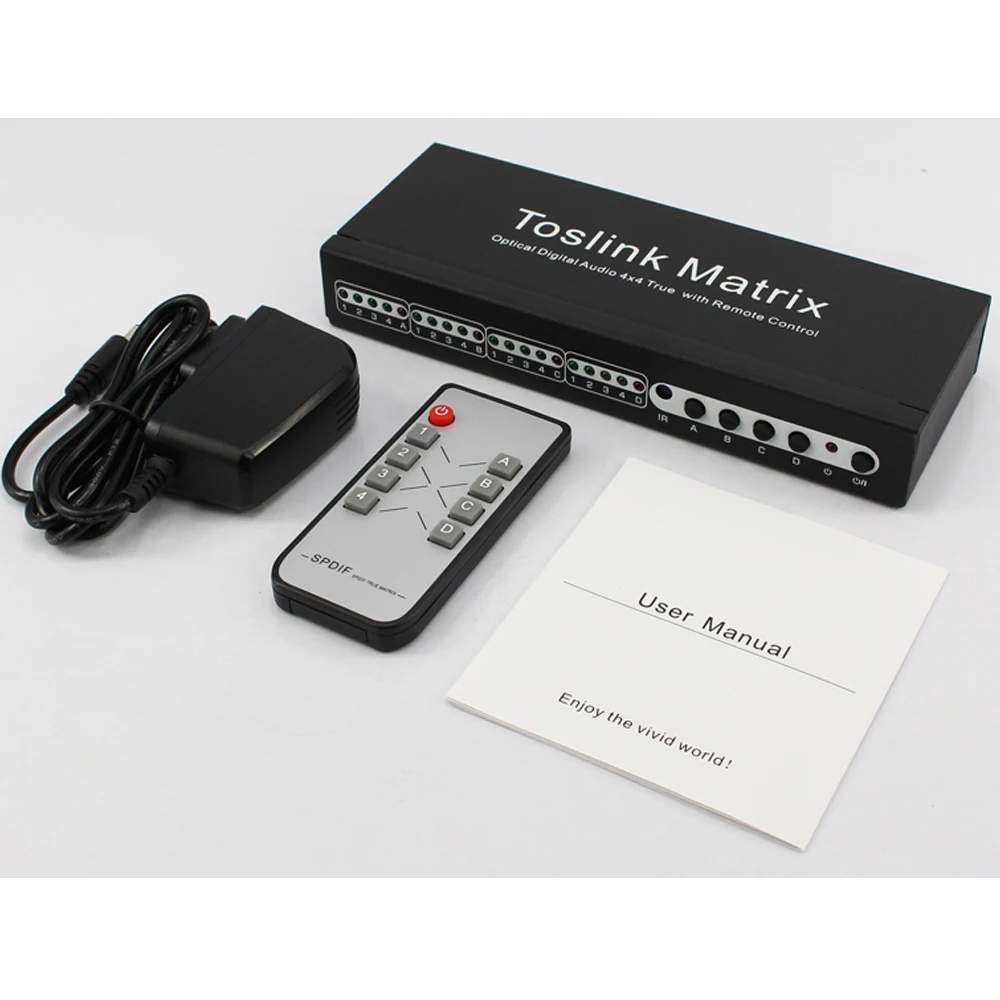

Package Contents:
1. Main unit x1
2. Remote controller x1
3. AC power adapter x1
4. User manual x1
Specifications:
Support audio format...... ............................................LPCM2.0/DTS/
Peak wavelength.................................................................................................650nm
\Max baud rate....................................................................................................16Mbps
Digital input level......................................................................................0.1~1Volts p-p
Output cable distance.....................≤ 5m(Use the optical fiber cable loss less the 0.2dB/m)
Max working current.............................................................................................200mA
Power adapter format Input........................................AC100V~240V 50Hz/60Hz,DC5V/1A
Operating Temperature range........................................................................-10 to +55℃
Storage Temperature range...........................................................................-20 to +60℃
Operating Humidity range................................................10 to 90% RH(No Condensation)
Storage Humidity range.....................................................5to 95% RH(No Condensation)
Case Dimension(L x W x H).....................................................................180x67x29(mm)
Weight..................................................................................................................408g
QQ20181106181710
QQ20181106181716
b
QQ20181106180054
n
i
u
c
e
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.625kg (1.38lb.)
  • Package Size: 22cm x 18cm x 10cm (8.66in x 7.09in x 3.94in)
